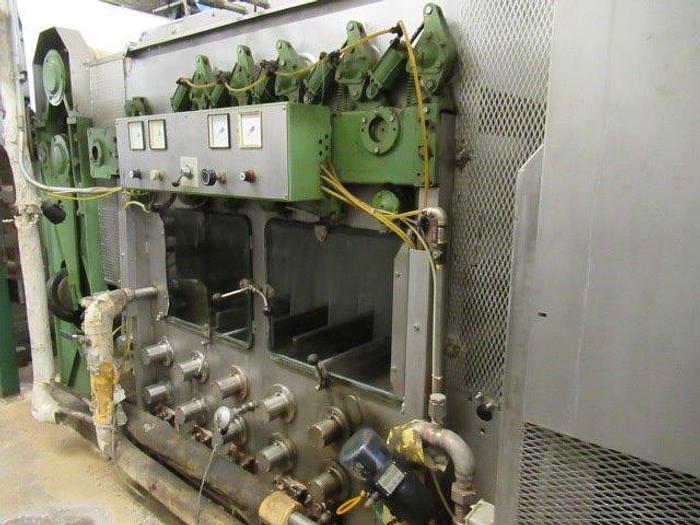

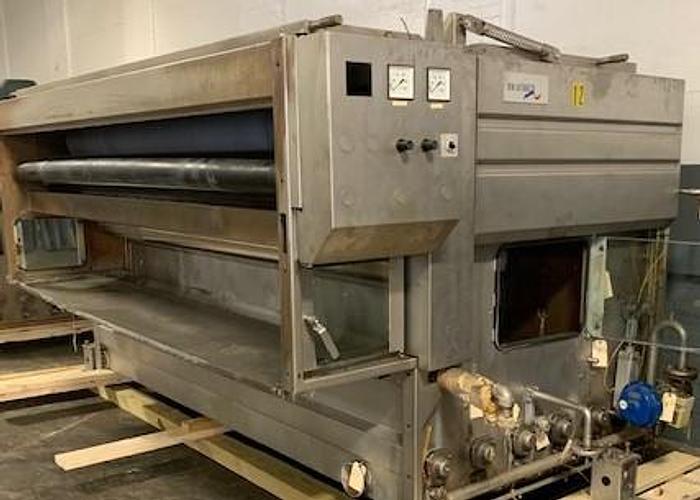

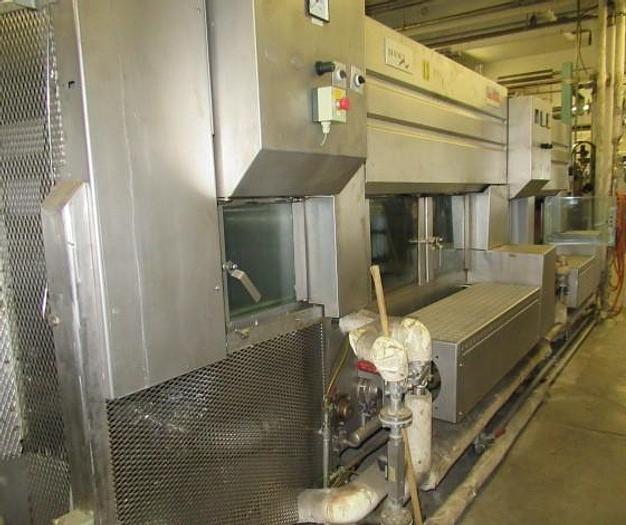

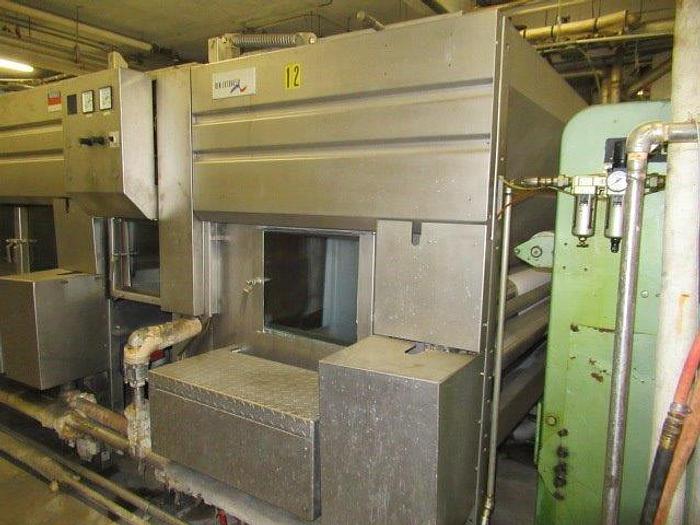

WASH BOX

2 x Benninger Wash Boxes

1 x Benninger (Ben-Extracta) Wash Box

Model EA-6, Ser. #8152

2000 year

3000 mm = (118” wide)

6 – rubber top rolls, 118” wide x 8” diameter

6 – SS top rolls, 118” wide x 8” diameter

(SS rolls are driven and is pneumatic pressure on rubber rolls)

7 – SS submerged bottom rolls, 118” wide x 8” diameter

(12 pass – 22 meter fabric capacity)

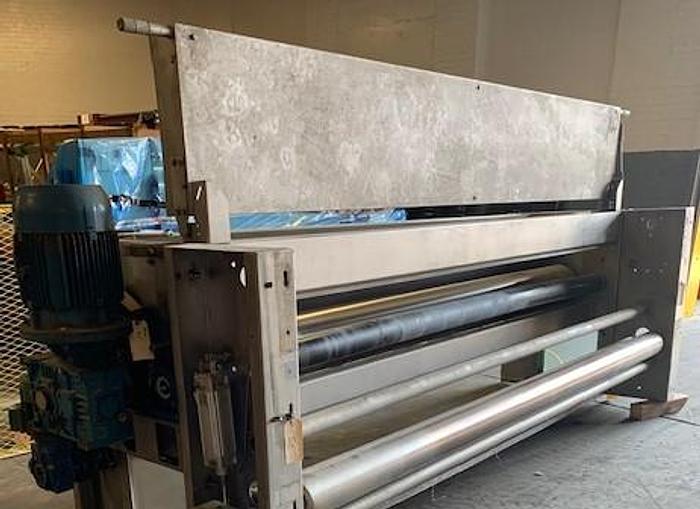

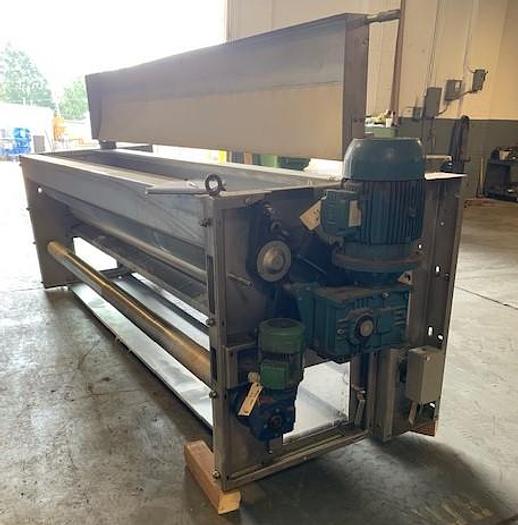

At the exit end of the wash box is a rubber/SS nip, 118” wide x 10” diameter

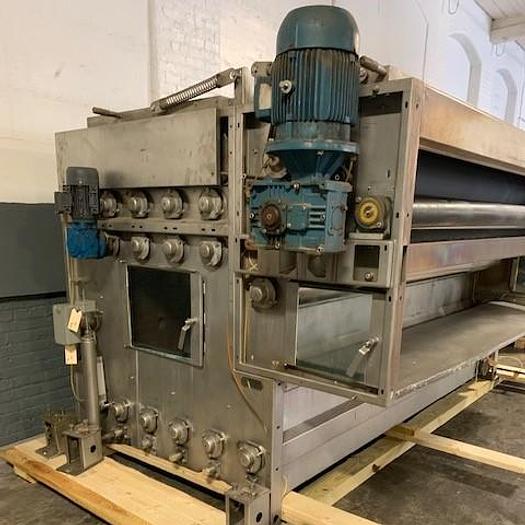

This nip is driven with DC motor and gear reducer

1 x Benninger (Ben-Extracta) Wash Box

Model EA-4

2000 year

3 meters (118” wide)

4 – SS top rolls, 118” wide x 6” diameter

3 – SS top rolls, 118” wide x 6” diameter

1 – SS top roll (scroll) 5” diameter, driven

5 – SS submerged bottom rolls, 118” wide x 8” diameter

(9 pass – 15 meter fabric capacity)

At the exit end of the wash box is a rubber/SS nip, 118” wide x 10” diameter

This nip is driven with DC motor and gear reducer

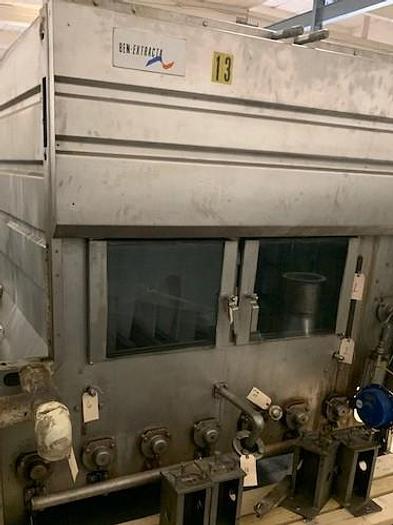

The BEN-EXTRACTA

– Box design with excellent torsional and floor stability

– No transmission drives nor friction clutches; only single drives

– Separate intermediate squeezer

– Practically the same washing effect with DA and EA compartments

– Excellent accessibility to the squeezers and compartments for cleaning/maintenance

– Low tension fabric transport through controlled single motor drives

– Large guide roll diameter and proper spacing ensure crease-free operation

– Lightly running rolls (new seals and new external bearings)

– Simple and straight liquor flow

No steam escapes from the steamtight BEN-EXTRACTA washing compartments even at

high temperature. The steam sealing of the entire washing range leads to a better

washing effect, and energy consumption is distinctly reduced.
