OPEN-WIDTH WASHING MACHINES BETA

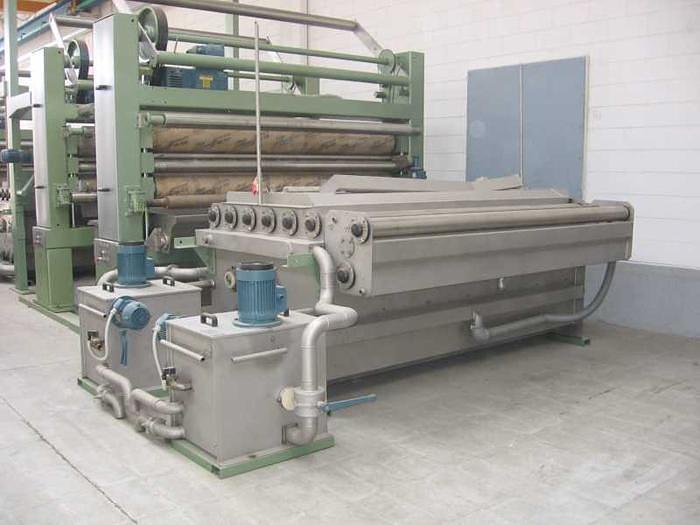

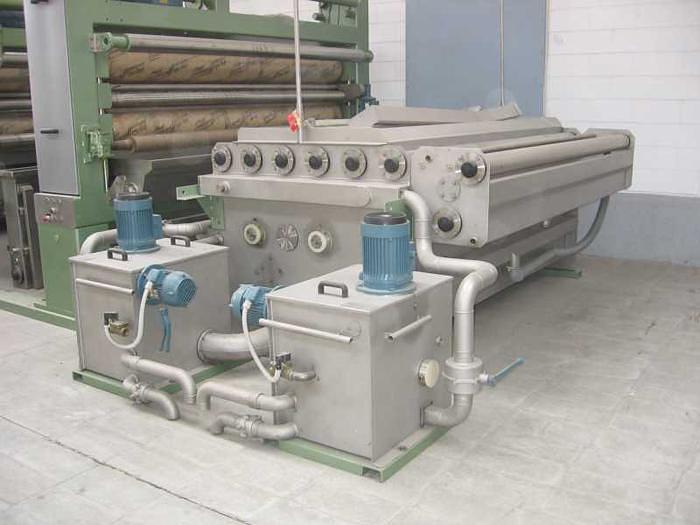

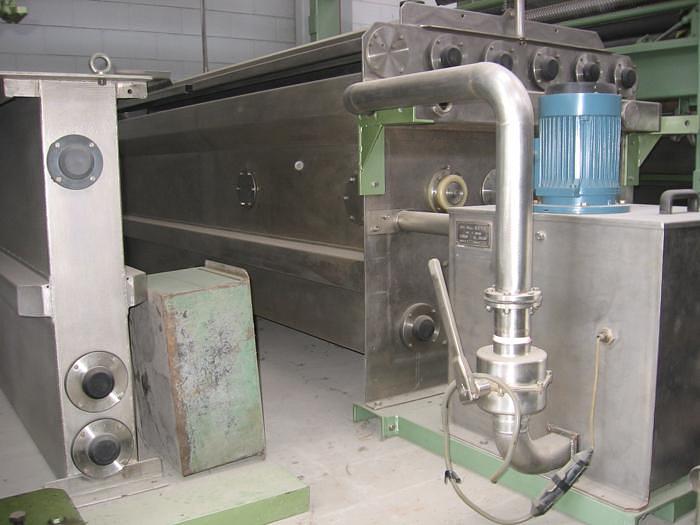

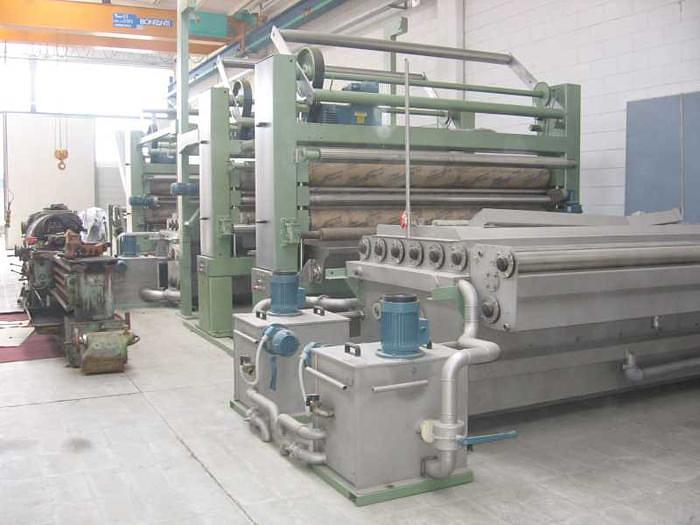

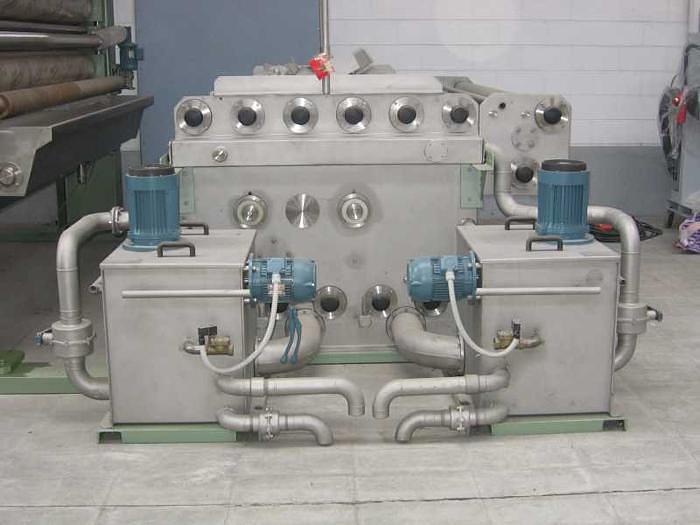

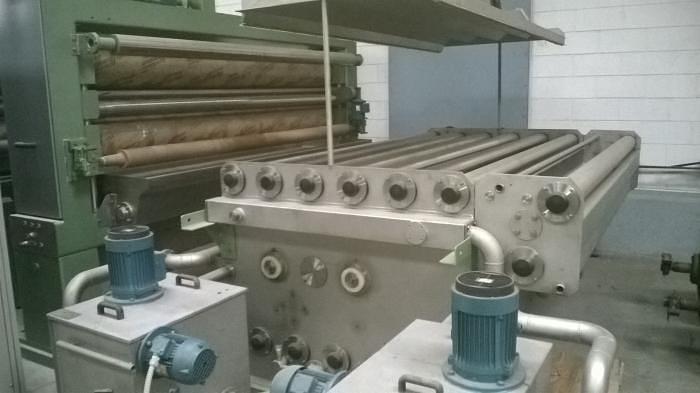

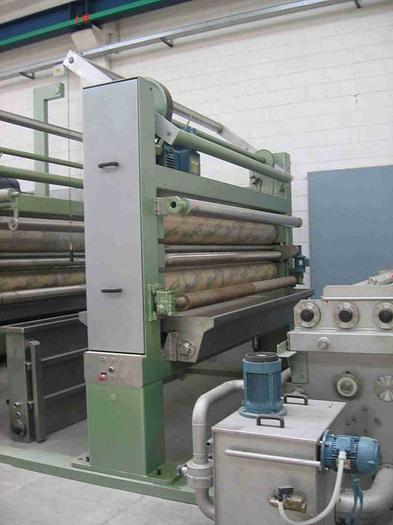

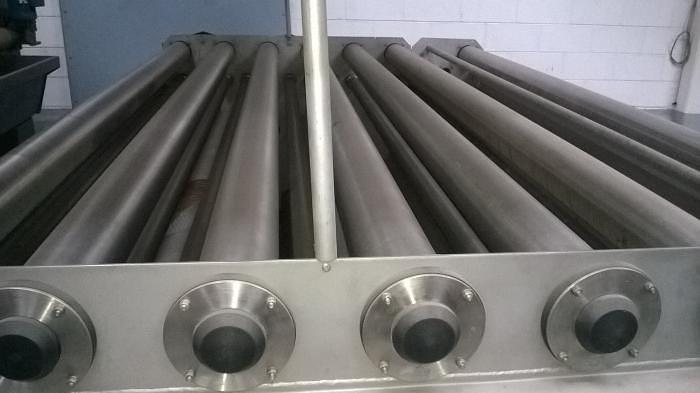

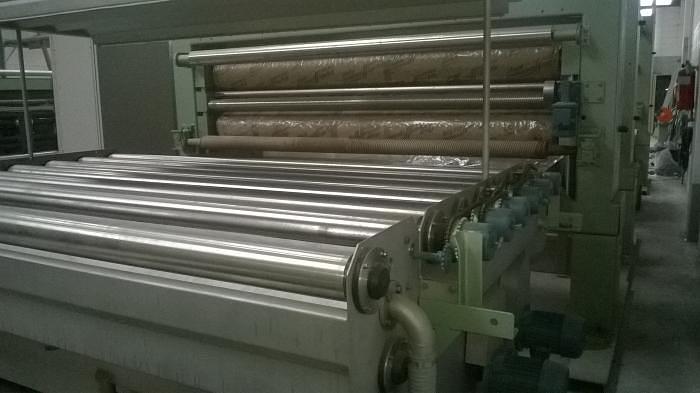

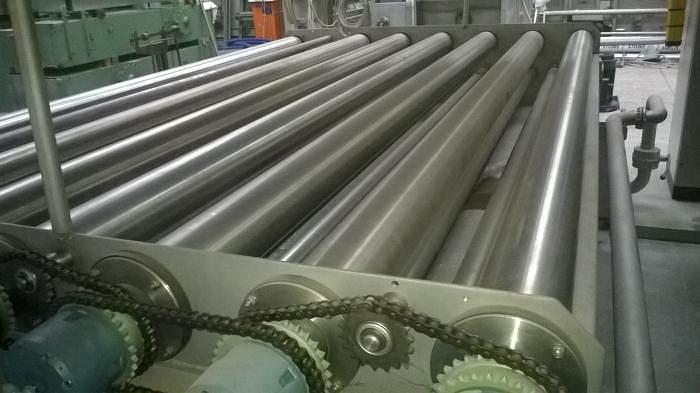

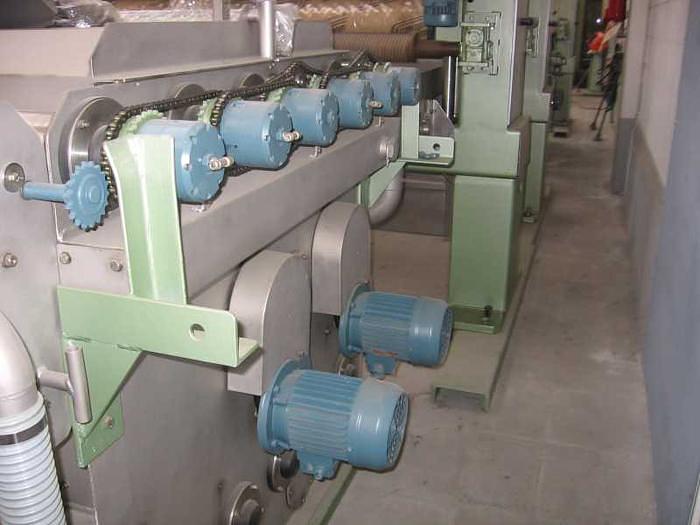

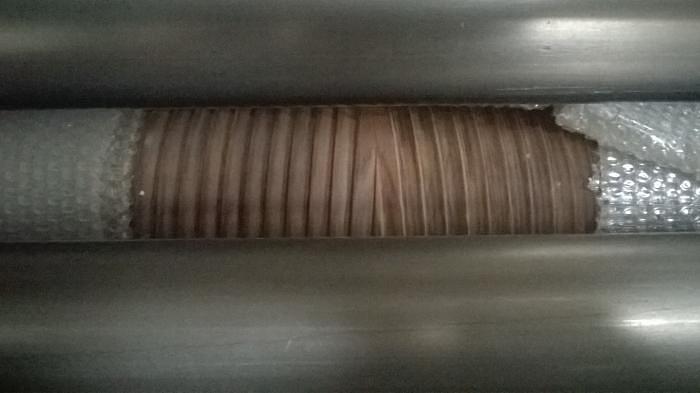

- 2 impregnation boxes with hermetical seal, inspectable by means of pneumatic system, complete with 10 cylinder, wide 2600 mm, diameter 120 mm motorized by pneumatic clutch - idle cylinders - complete with direct heating - 9 launches of raining down water distribution, diameter 2" - 2 widening cylinders made of ebonite, diameter 250 mm, 3 priciples, working by alternating current - 3 continuous filters, automatic and self-cleaning BETA, type FAD 2 constituted from : - parallelepiped crate made of stainless steel with central diaphragm - filter disc with continuous rotative movement, with drive, engine by 0,6 HP - forced washing system, intermittent working^- high efficency centrifuge pump, capacity about 700 l /min, prevalence about 0.7 atm. in stainless steel, engine by 4,5 HP - entry bore diameter 170 complete with disc and packing - out with slide valve in stainless steel diameter 2"1/2" - 3 rollers squeezers 3 impregnation cylinders BETA width 2600 mm : - rubber diameter 300 mm - ebonite diameter 140 mm - rubber diameter 300 mm - expanders made of stainless steel and ebonite^compost of : - double impregnation steel box, entry with braking system - out with compensator - roller squeezer by exit layer - motorization c.c. with adjustable speed - introduction with centering devices - delivered lap - machine lacking in electrical panel
