No longer available


  • driven entry with ERARDTH+LEIMER cloth guide, model kf 2020

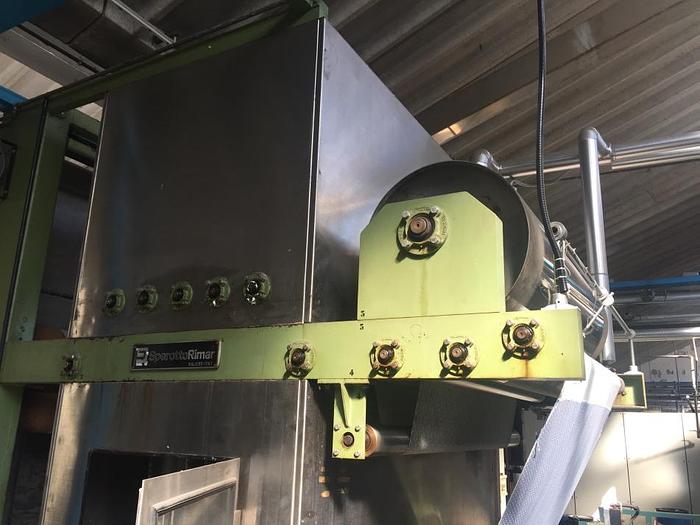

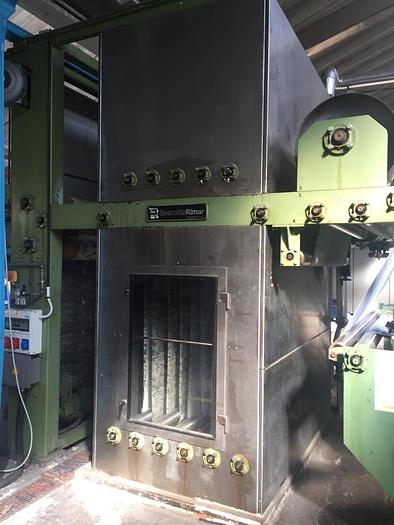

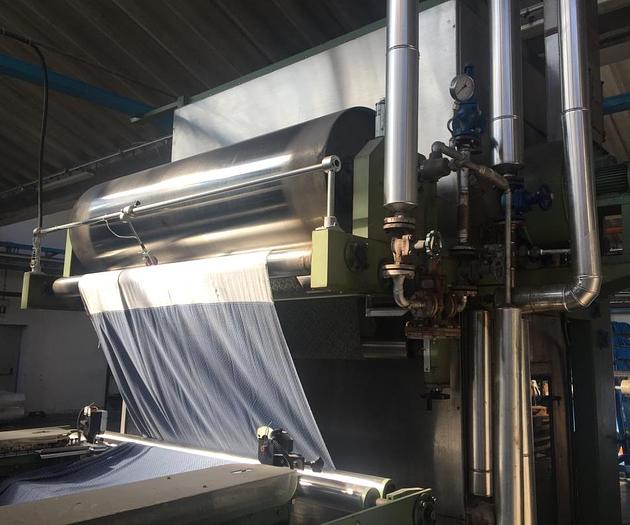

  • steaming chamber 20 meters cloth content steaming cylinder with steam distribution from the inside to the outside , diam. 640 mm, covered with special material, to obtain perfect distribution of the steam on to the fabrics

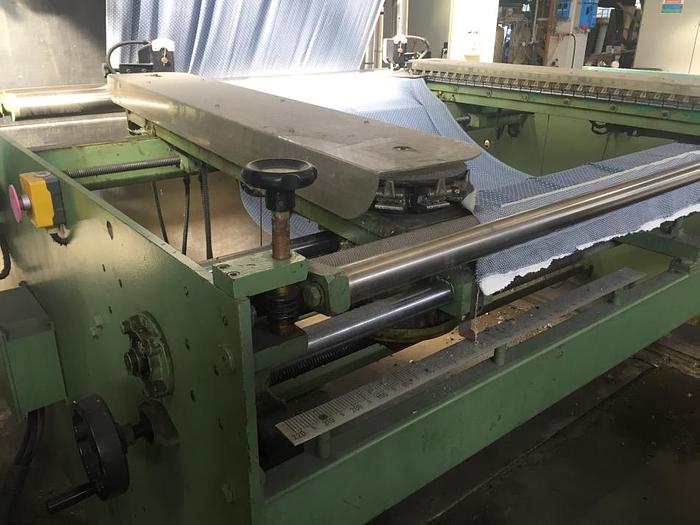

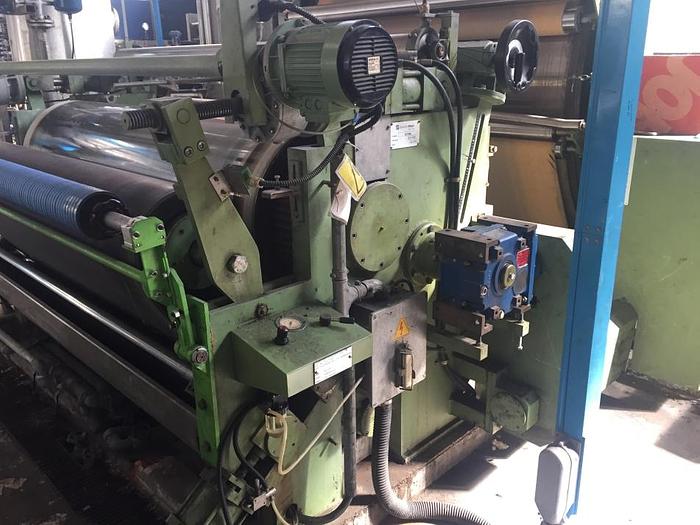

  • levelling stenter with clip chain length mt 2, with horizontal chain, rubber-belt shrinkage group with cylinder diameter mm. 610 chromed with rotary joint for heating of the same (steam heated) – water cooling system for the rubber-belt – tension of the rubber belt controled by a motor-reductor gear - with automatic discharge of the tension each time the machine stops (to avoid damage and deforming on to the rubber-belt)
  • grinding unit to rectify the belt with suction device – blade system for the cleaning of the belt felt calender (palmer) cylinder diameter mm.2000 – felt drying cylinder 800 – both of these cylinders are steam heated with its rotary joints self centering unit for the felt, pneumatically driven, felt tension also controlled by pneumatic guider,
  • cooling unit consisting of three water-cooled stainless steel cylinders – diam. mm. 650

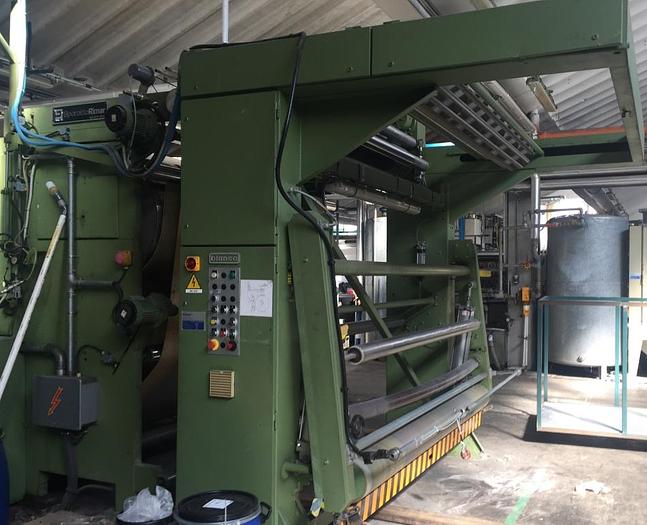

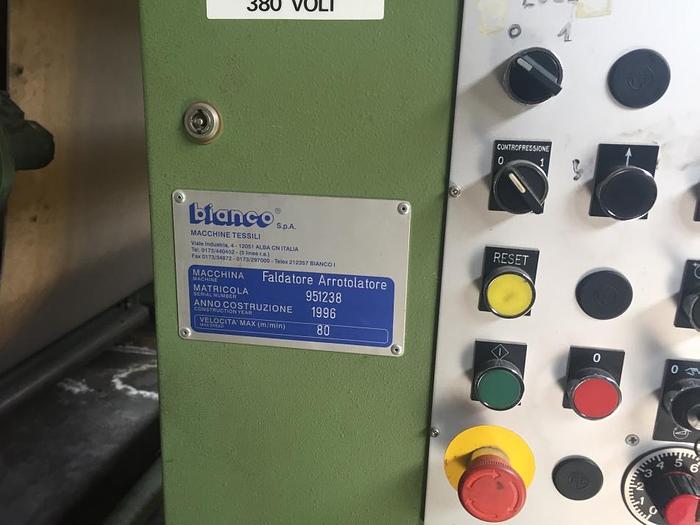

  • exit with bianco batcher and plaiter year 1996 suitable for beam max 1800


Width2000 mm
Working Width1800 mm
