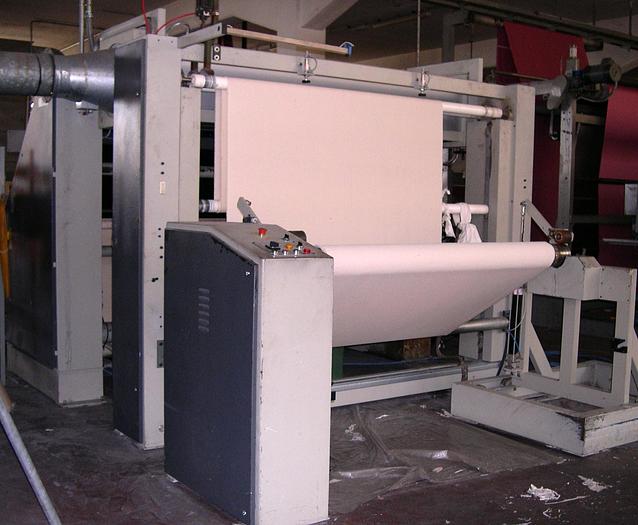

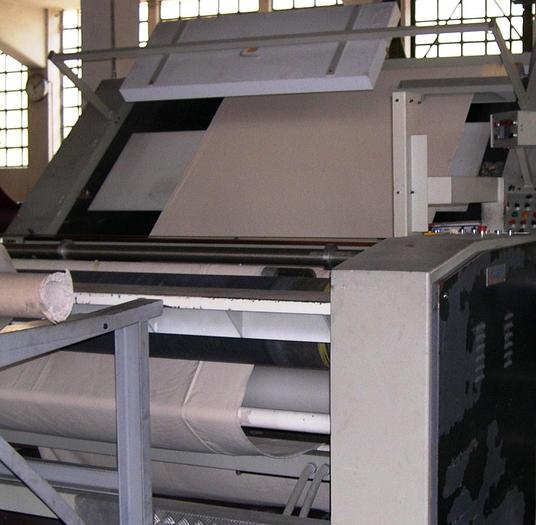

INSPECTING MACHINE TECNOTEAM SP2

Push-button reversing

Adjustable working speed from 0 to 60 mt/min

Fabric tension adjustable by potentiometer

Roll holder trolley suitable for rolls diam. max 1200 mm, max weight 1300 kg, wrapped on 140 mm metal core.

Composed by:

n.2 support shoulders, one of which is mobile to compensate the different heights of the subbi

n.3 vulcolan wheels, one of which pneumatically controlled, for gripping the large roll

n.1 direct current geared motor

n.1 electronic card, combined with the column dancer
